Hesco Barrier

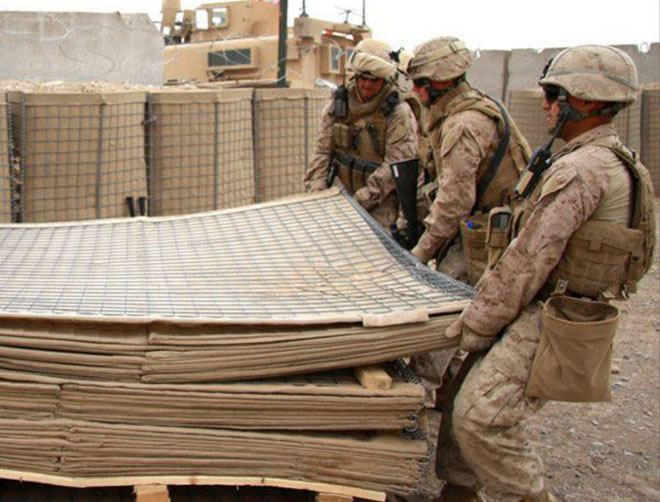

Hesco barrier is a modern military fortification, it's made of a collapsible wire mesh container and heavy duty fabric liner, used as barrier against blast or small-arms.
Specification:
Material | Galvanized steel wire,Galfan Wire |
(1)Wire Thickness: | 8 Gauge:MIL 1,2,3,4,,5,8,9 6 Gauge:MIL 7,10 |
(2)Mesh Size: | 3" x 3" |
(3)Sprial Wire/Coil Hinges/ Helical wire: | 8 Gauge . |
(4)Joining Pins: | 8 Gauge and 10 Gauge. |
5)Geo-textile: | 2mm heavy-duty non-woven polypropylene cloth. weight:250-300g/m²; color:Beige, Green |

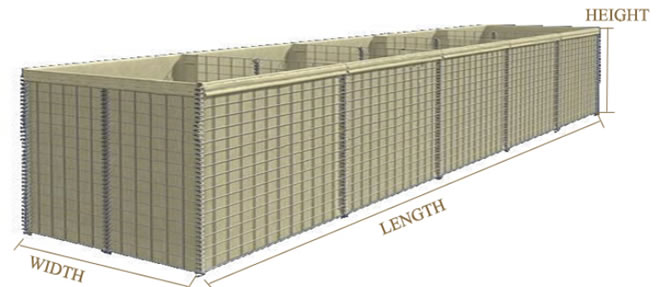

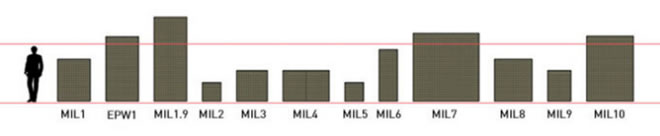

Dimension of Hesco Barrier:
Unit Type | Height | Width | Length | Internal Cells |
MIL 1 | 4'6" | 3'6" | 32' | 9cells(4+5) |
MIL 2 | 2' | 2' | 4' | 2cells |
MIL 3 | 3'3" | 3'3" | 32' | 10cells(5x2) |
MIL 4 | 3'3" | 5' | 32' | 10cells(5x2) |
MIL 5 | 2' | 2' | 10' | 5cells(5x1) |
MIL 6 | 5'6" | 2' | 10' | 5cells(5x1) |
MIL 7 | 7'3" | 7' | 90' | 13cells(4+4+5) |
MIL 8 | 4'6" | 4' | 32' | 9cells(4+5) |
MIL 9 | 3'3" | 2'6" | 30' | 12cells(6x2) |
MIL 10 | 7' | 5' | 95' | 20cells(5x4) |
MIL1.9 | 9' | 3'6" | 11'3" | 3cells(3x1) |
EPW 1 | 7' | 3'6" | 108' | 30cells(5x6) |
