3D Welded Mesh Panel
3D smart structure panel Feature

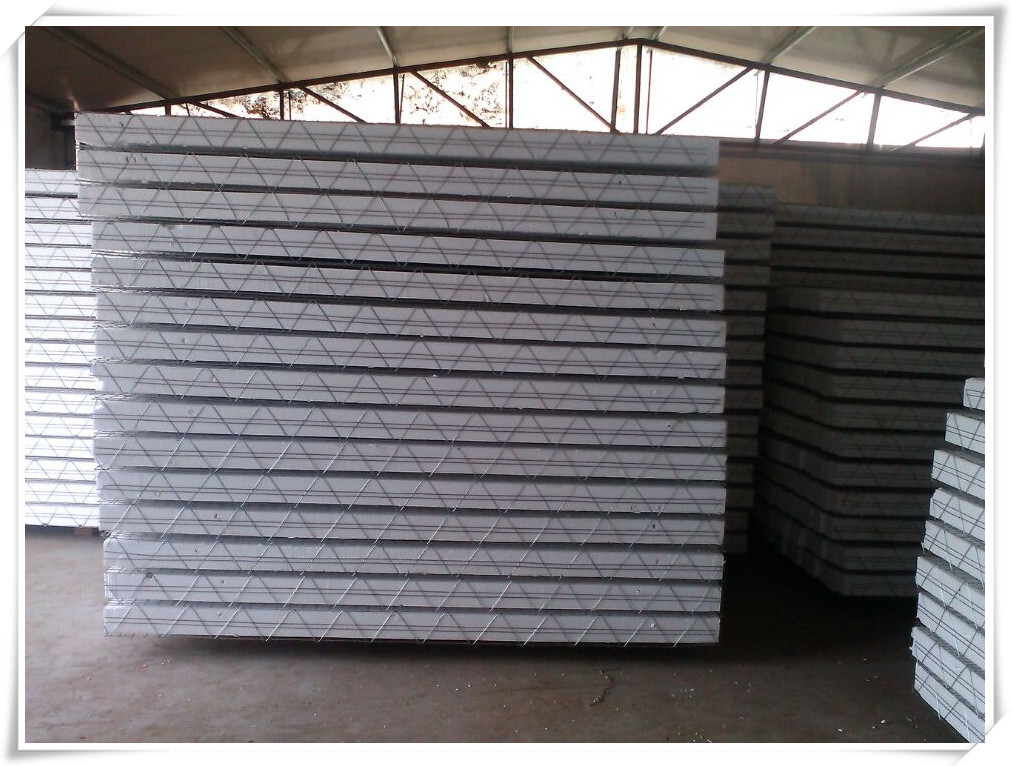

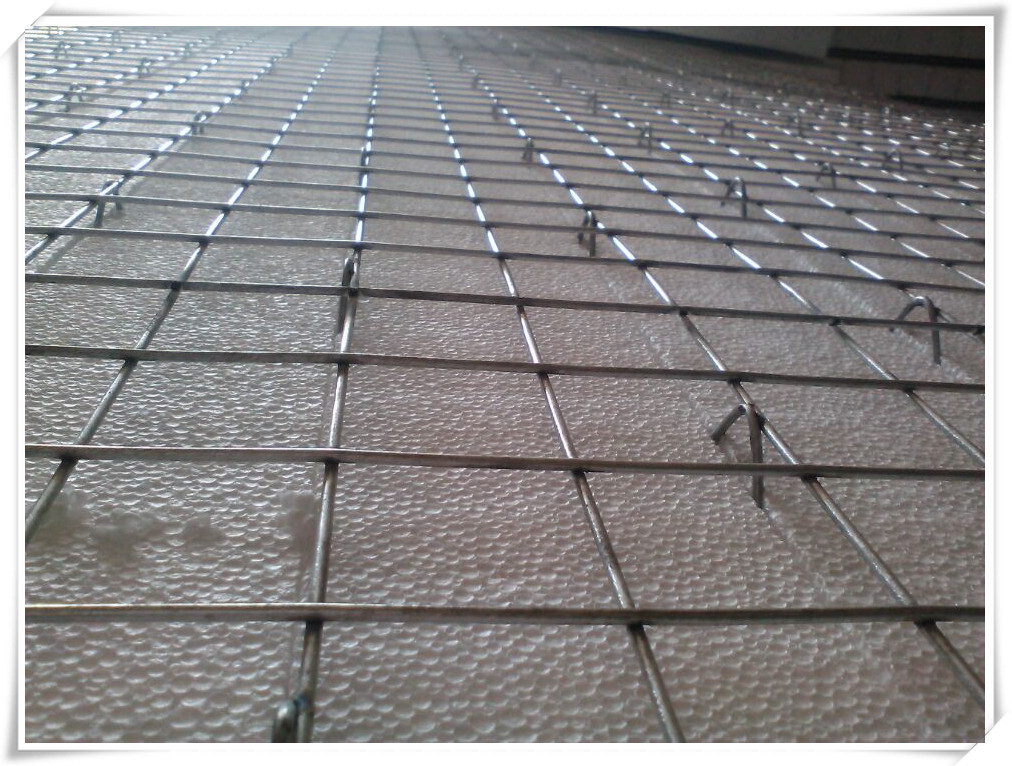

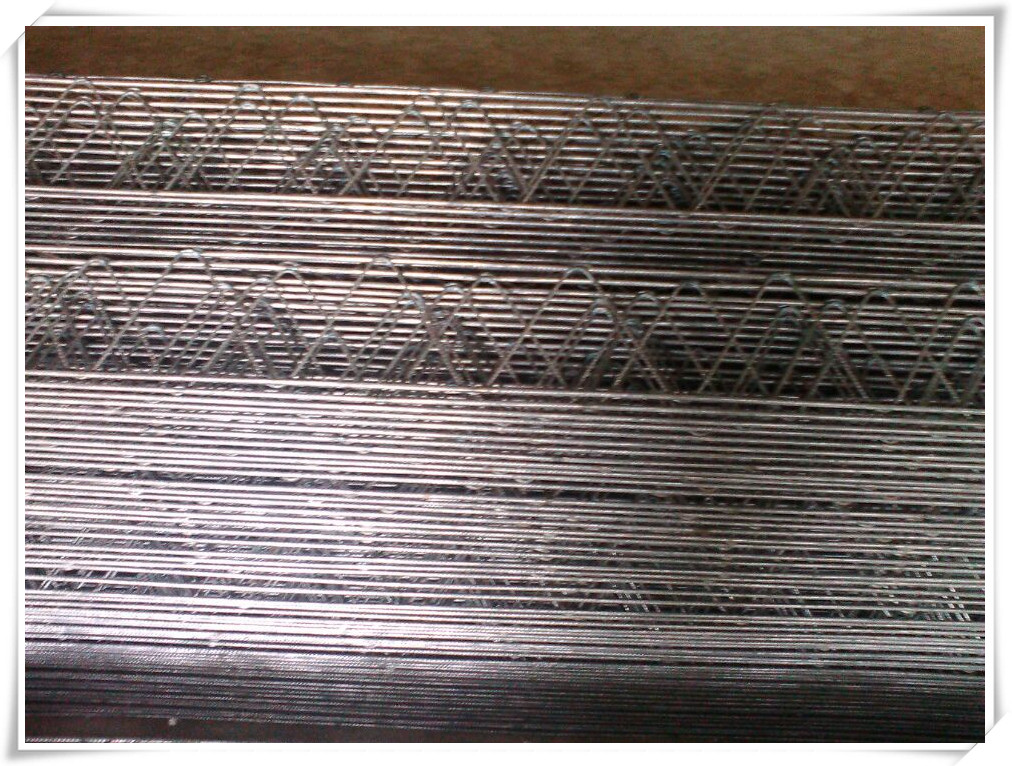

It is a polystyrene core with reinforced steel mesh on the outside which you shoot 1.5 inches of concrete to eachside for strength and thermal mass. This panels consist of a three dimensional welded wire space frame utilizing a truss concept for stress transfer andstiffness. Each surface of the wire space frame has a 2 inch square welded mesh pattern of longitudinal and transverse wires of the same diameter.Individual welded internal strut wires or diagonals extend through the panel core between each surface. These galvanized strut wires are welded continuously in the required spacing so they form, with the welded wire fabric, into a triangulated truss system which greatly increases the panel strength. When welded in place, these strut wires pierce through a modified expanded polystyrene core placed between the two layers of welded wire fabric, maintain the required distance apart and provide the shear transfer between the panel surfaces.
The modified expanded polystyrene core (minimum density 0.9 pounds per cubic foot) is held 1/2" or 3/4" from each face of the wire frame to permit the wire to be embedded in an application of approximately 1" - 2" thick concrete mixture with 2,500 psi minimum.
Advantages
- Energy efficient
The product is one of the most intriguing aspects of the product is that it is an energy efficient material to use
for the exterior walls of structures. The use of this product along with other efficient materials in the construction of homes and commercial buildings led us to buy the regional distributorship for 3D panel and start building homes using the " Green Concept" - Environmentally friendly
With our cities growing, there is a need for a method of building that will be more environmentally friendly and cost efficient. If we can decrease the amount of energy needed for daily living we could decrease the impact on our environment. Studies have shown that an increase of 5% thermal efficiency corresponds to a 15% reduction in CO2 in our atmosphere due to decrease energy consumption. - Cost saving
The 3D panel building system is a superior building product that easily meets the challenges of fighting the high energy cost for operating your home or commercial building. Safe and convenient
3D panels not only can provide a means for families to have a home that is energy efficient but also can bring them a security home withstand even the fiercest of Nature's attacks.
Application
this products can be used in the construction of homes and commercial buildings.
Specification:
1.G.I 3D PANEL
No. | wire diameter | mesh | thickness | width | length |
A001
|
2.5-4.5mm
|
2”×2”
|
1.5”
|
3’
|
8’
|
A002
|
2.5-4.5mm
|
2”×2”
|
1.5”
|
4’
|
8’
|
A003
|
2.5-4.5mm
|
2”×2”
|
1.5”
|
5’
|
8’
|
A004
|
2.5-4.5mm
|
2”×2”
|
1.5”
|
6’
|
8’
|
A001
|
2.5-4.5mm
|
2”×2”
|
2”
|
3’
|
8’
|
A002
|
2.5-4.5mm
|
2”×2”
|
2”
|
4’
|
8’
|
A003
|
2.5-4.5mm
|
2”×2”
|
2”
|
5’
|
8’
|
A004
|
2.5-4.5mm
|
2”×2”
|
2”
|
6’
|
8’
|
A101
|
2.5-4.5mm
|
2”×2”
|
3”
|
3’
|
8’
|
A102
|
2.5-4.5mm
|
2”×2”
|
3”
|
4’
|
8’
|
A103
|
2.5-4.5mm
|
2”×2”
|
3”
|
5’
|
8’
|
A104
|
2.5-4.5mm
|
2”×2”
|
3”
|
6’
|
8’
|
A201
|
2.5-4.5mm
|
2”×2”
|
4”
|
3’
|
8’
|
A202
|
2.5-4.5mm
|
2”×2”
|
4”
|
4’
|
8’
|
A203
|
2.5-4.5mm
|
2”×2”
|
4”
|
5’
|
8’
|
A204
|
2.5-4.5mm
|
2”×2”
|
4”
|
6’
|
8’
|
A301
|
2.5-4.5mm
|
2”×2”
|
5”
|
3’
|
8’
|
2. PVC 3D PANEL
No. | wire diameter | mesh | thickness | width | length |
B001 | 2.5-4.5mm | 2”×2” | 1.5” | 3’ | 8’ |
B002 | 2.5-4.5mm | 2”×2” | 1.5” | 4’ | 8’ |
B003 | 2.5-4.5mm | 2”×2” | 1.5” | 5’ | 8’ |
B004 | 2.5-4.5mm | 2”×2” | 1.5” | 6’ | 8’ |
B101 | 2.5-4.5mm | 2”×2” | 3” | 3’ | 8’ |
B102 | 2.5-4.5mm | 2”×2” | 3” | 4’ | 8’ |
B103 | 2.5-4.5mm | 2”×2” | 3” | 5’ | 8’ |
B104 | 2.5-4.5mm | 2”×2” | 3” | 6’ | 8’ |
B202 | 2.5-4.5mm | 2”×2” | 4” | 4’ | 8’ |
B203 | 2.5-4.5mm | 2”×2” | 4” | 5’ | 8’ |
B204 | 2.5-4.5mm | 2”×2” | 4” | 6’ | 8’ |
3. EPS 3D PANEL
No. | wire diameter | mesh size | thickness | width | length |
D201 | 2.5-4.5mm | 2”×2” | 2.5” | 4’ | 9.5’ |
D202 | 2.5-4.5mm | 2”×2” | 3” | 4’ | 9.5’ |
D203 | 2.5-4.5mm | 2”×2” | 4” | 4’ | 9.5’ |
D204 | 2.5-4.5mm | 2”×2” | 5” | 4’ | 9.5’ |
D205 | 2.5-4.5mm | 2”×2” | 6” | 4’ | 9.5’ |
D206 | 2.5-4.5mm | 2”×2” | 12” | 4’ | 9.5’ |
